Distometer

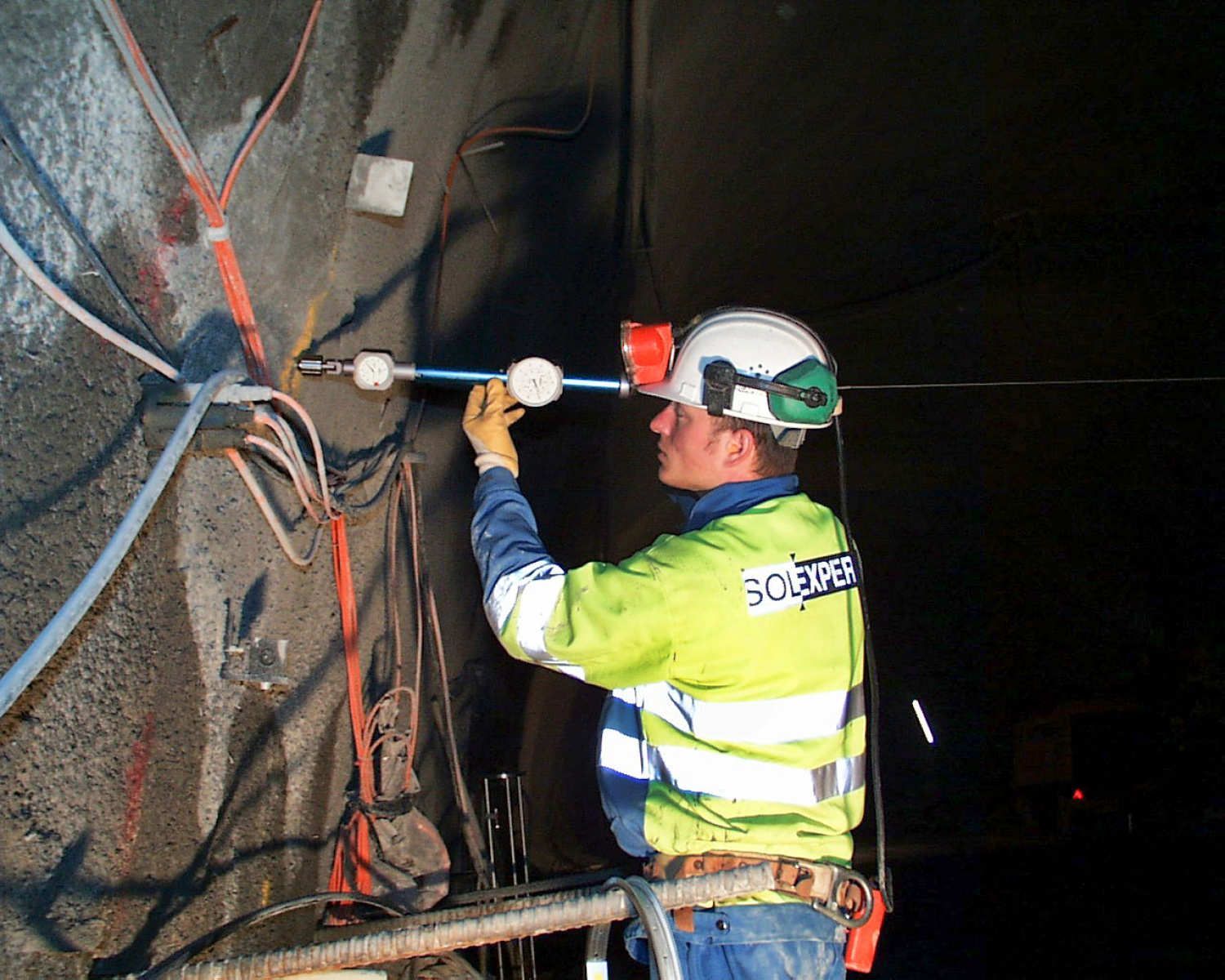

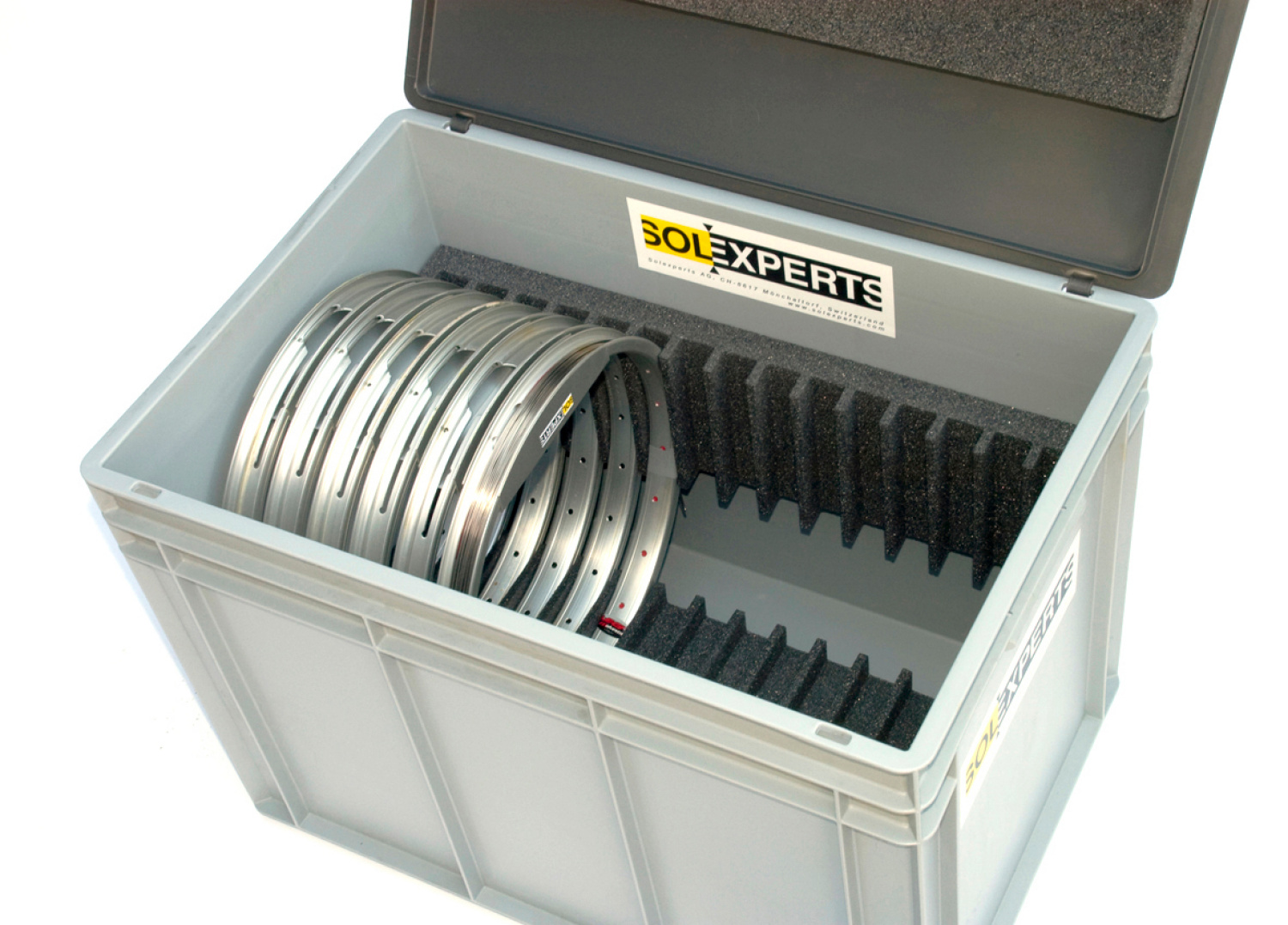

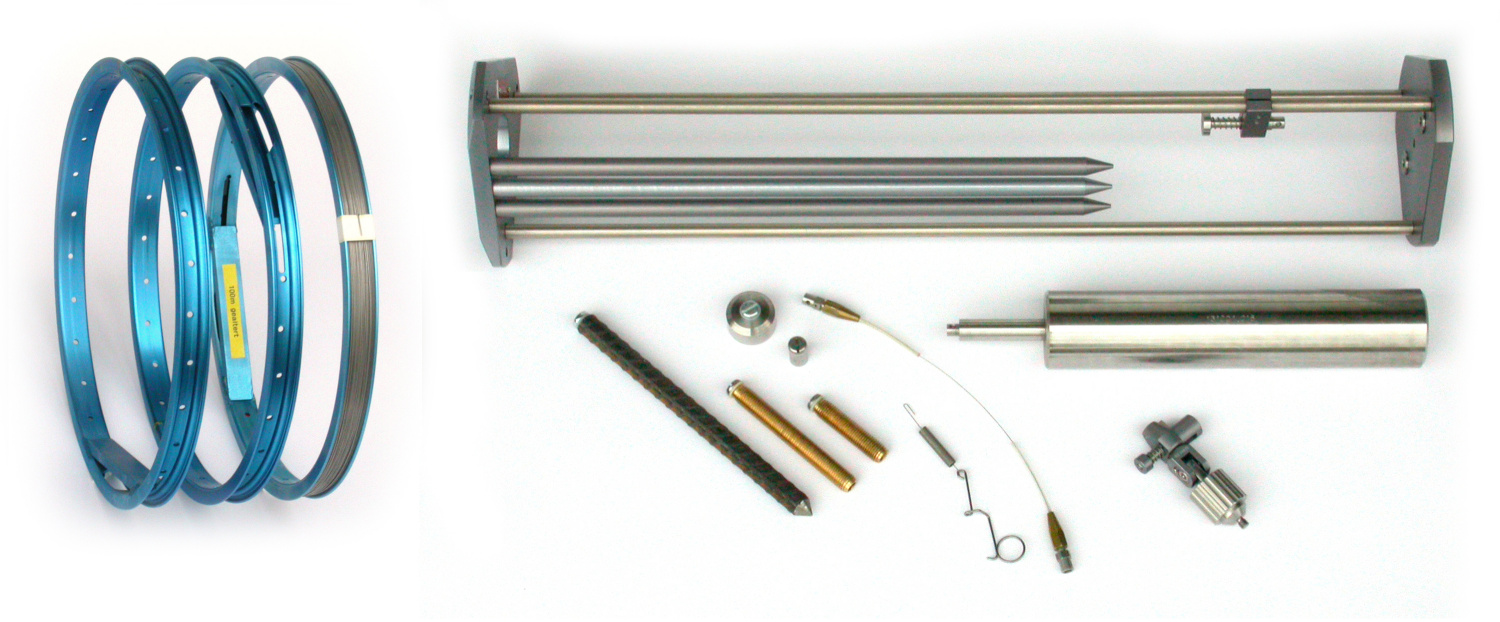

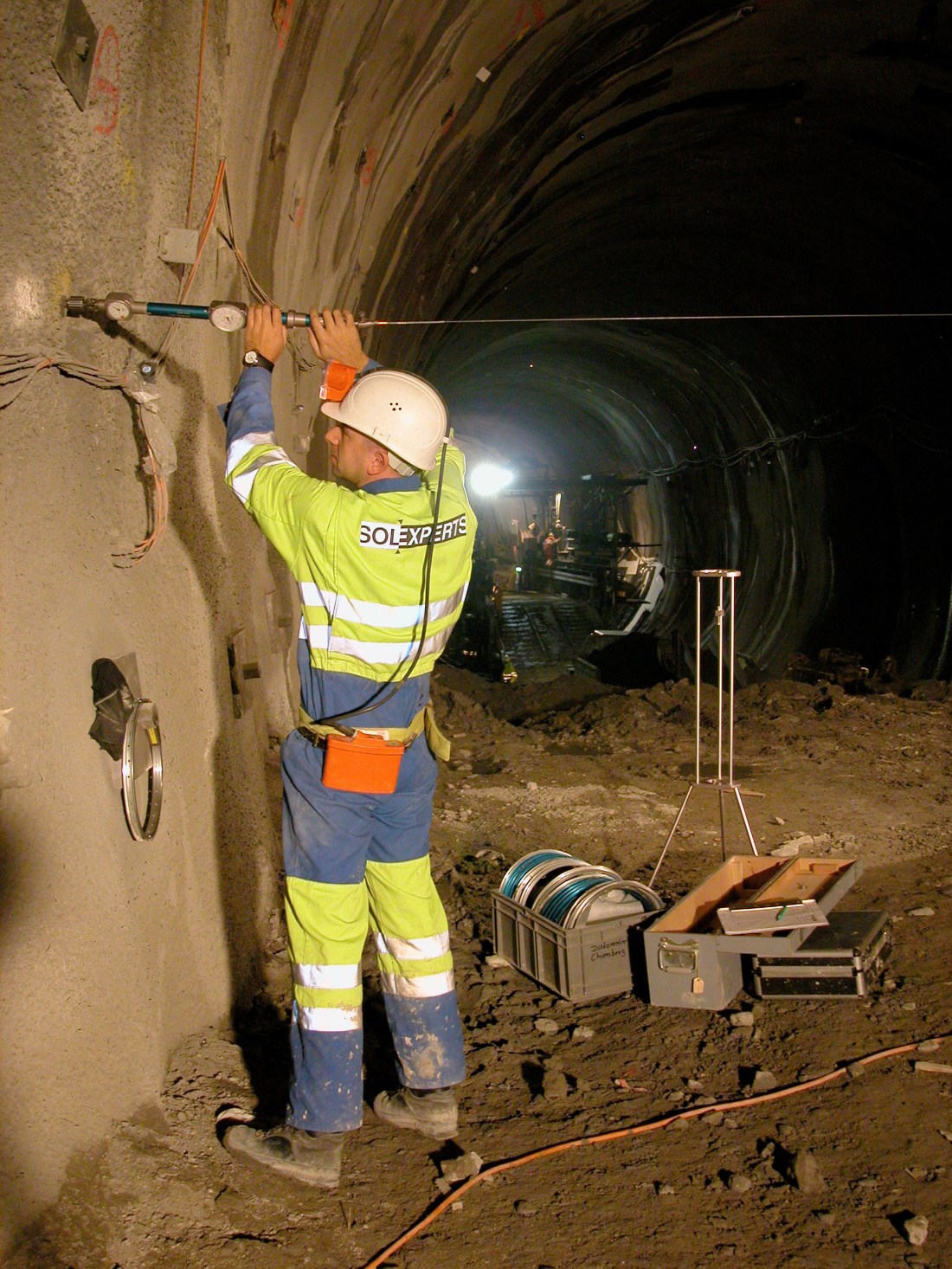

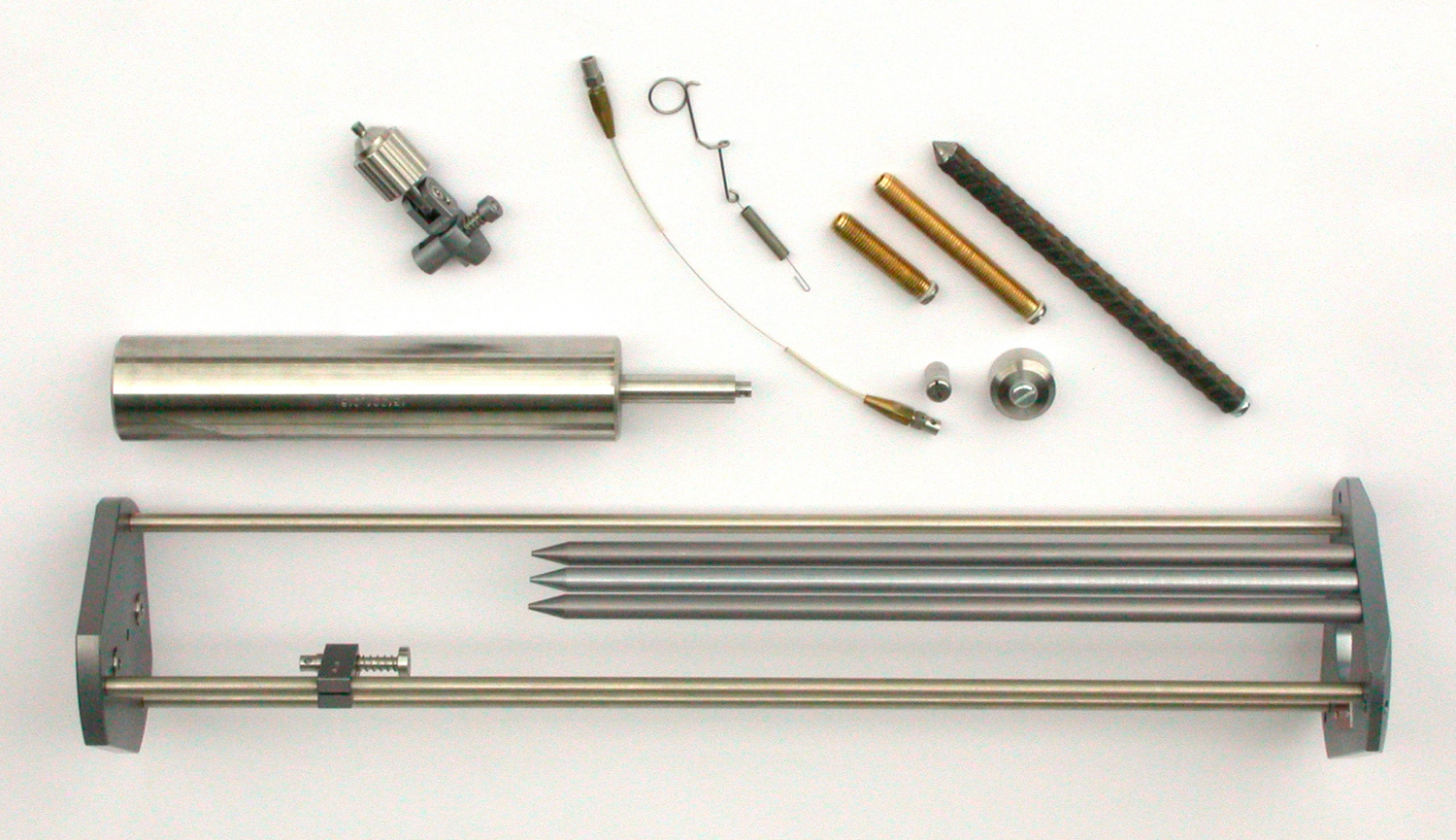

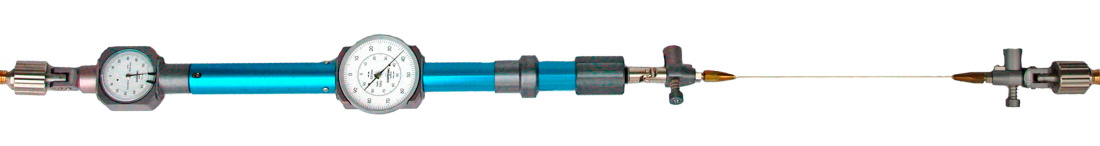

The portable distometer is mainly used in tunnel construction for very precise convergence measurements. An invar steel wire is clamped between measuring bolts with the distometer with a defined force and the change in length compared to previous measurements is determined. The measuring accuracy is +/-0.05 mm + 1*10E-6 x the distance. The measuring range is 100 mm.
