Multi-packer long-term monitoring systems, Nagra TBO

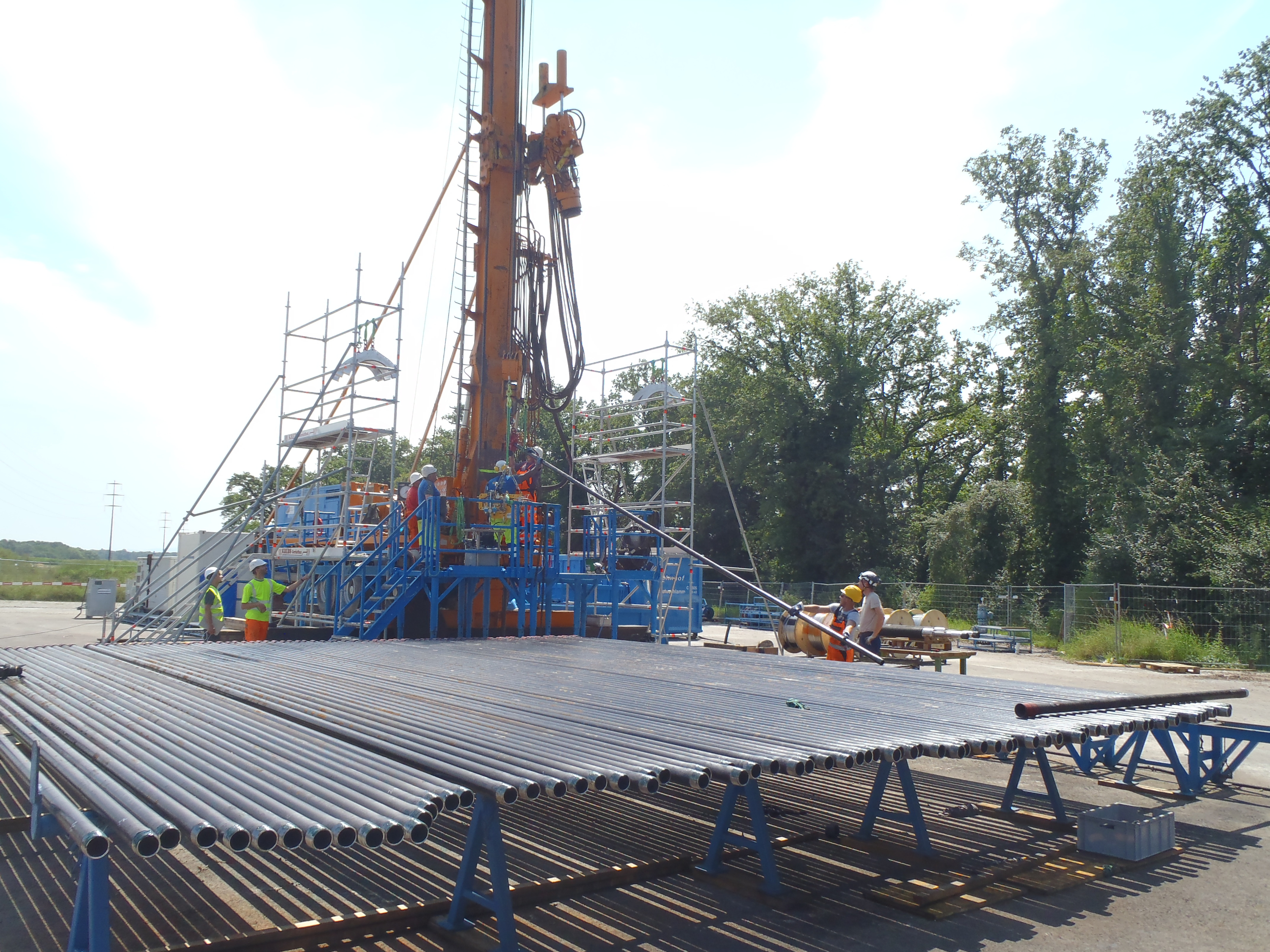

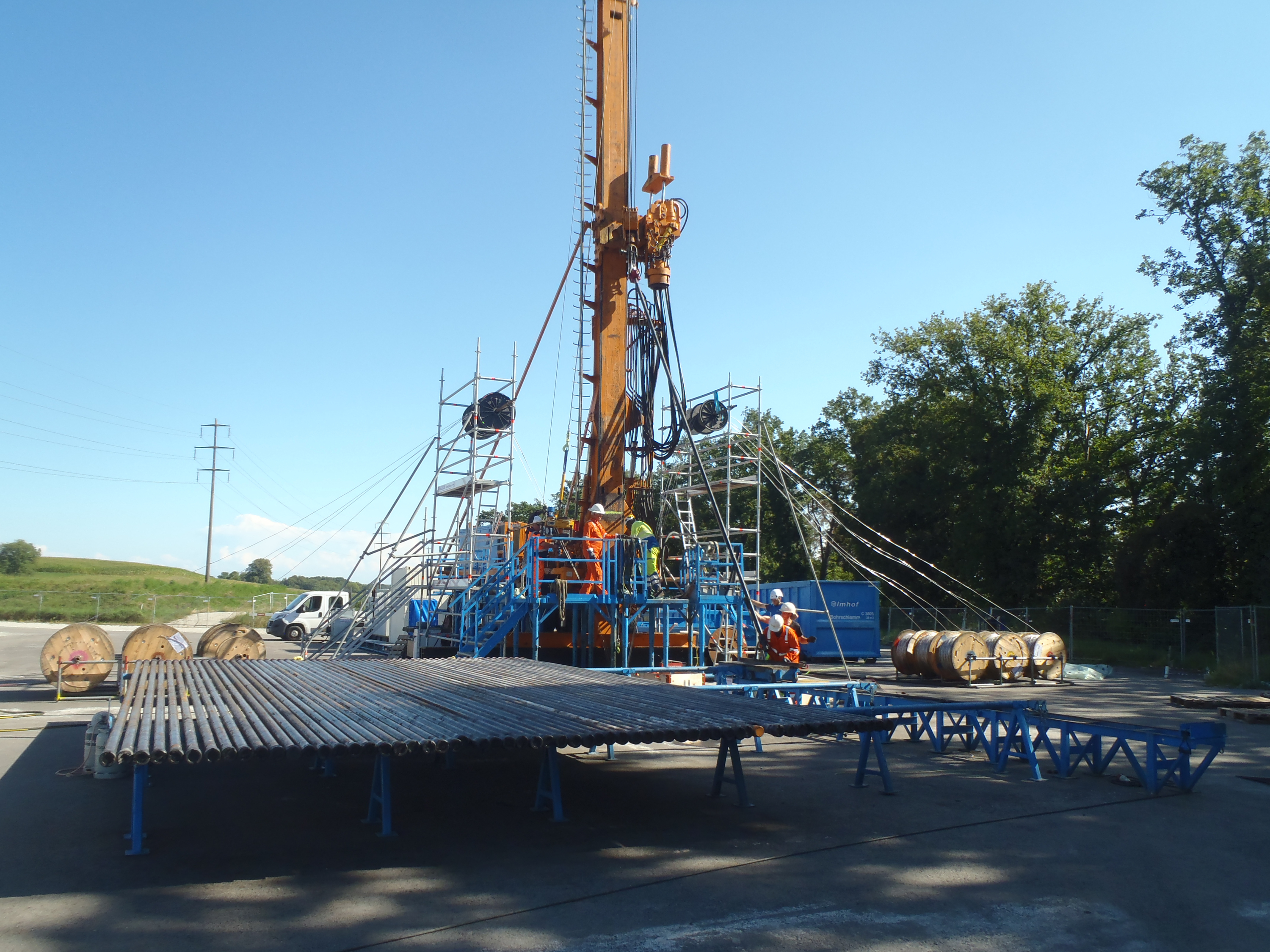

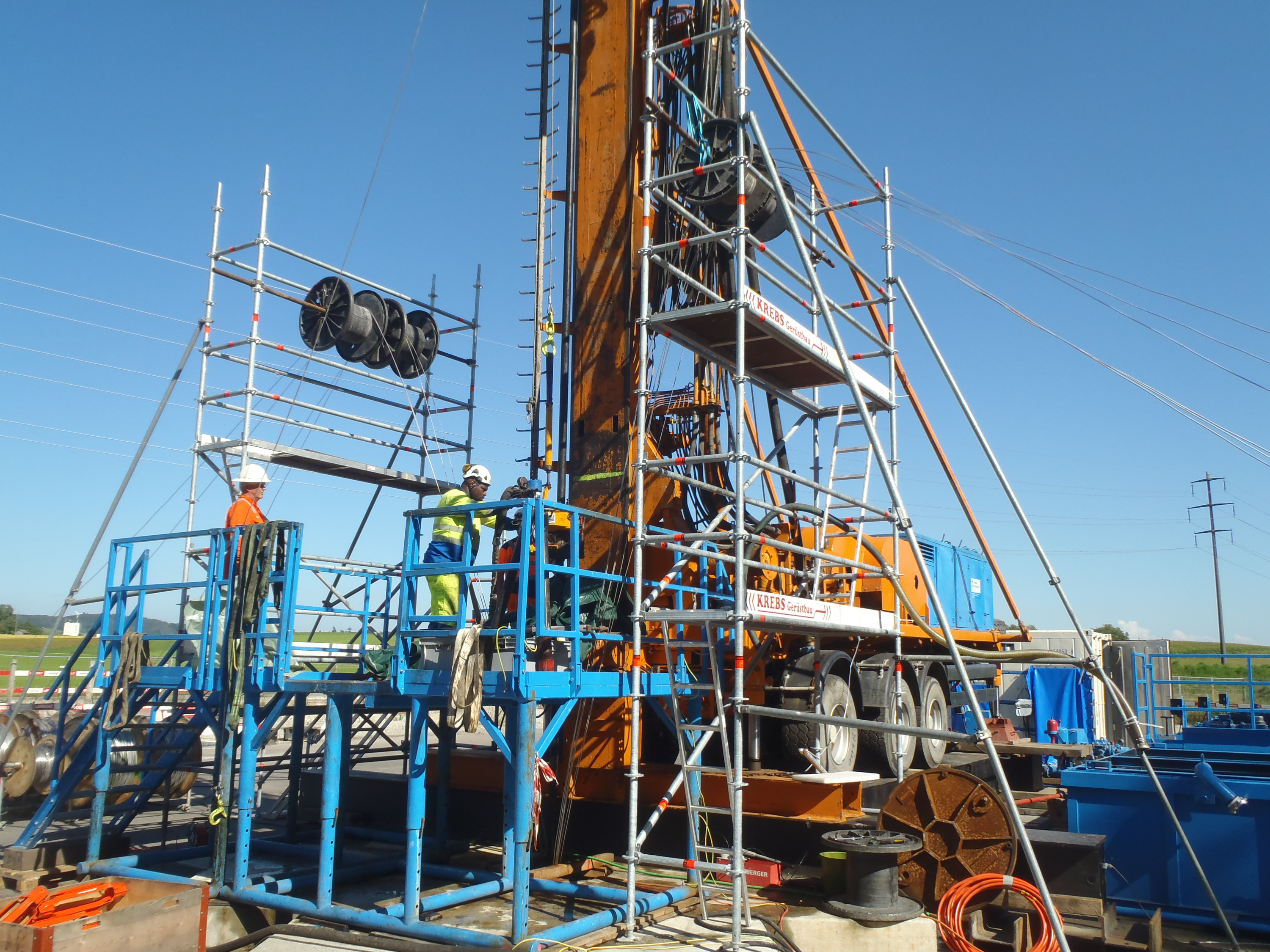

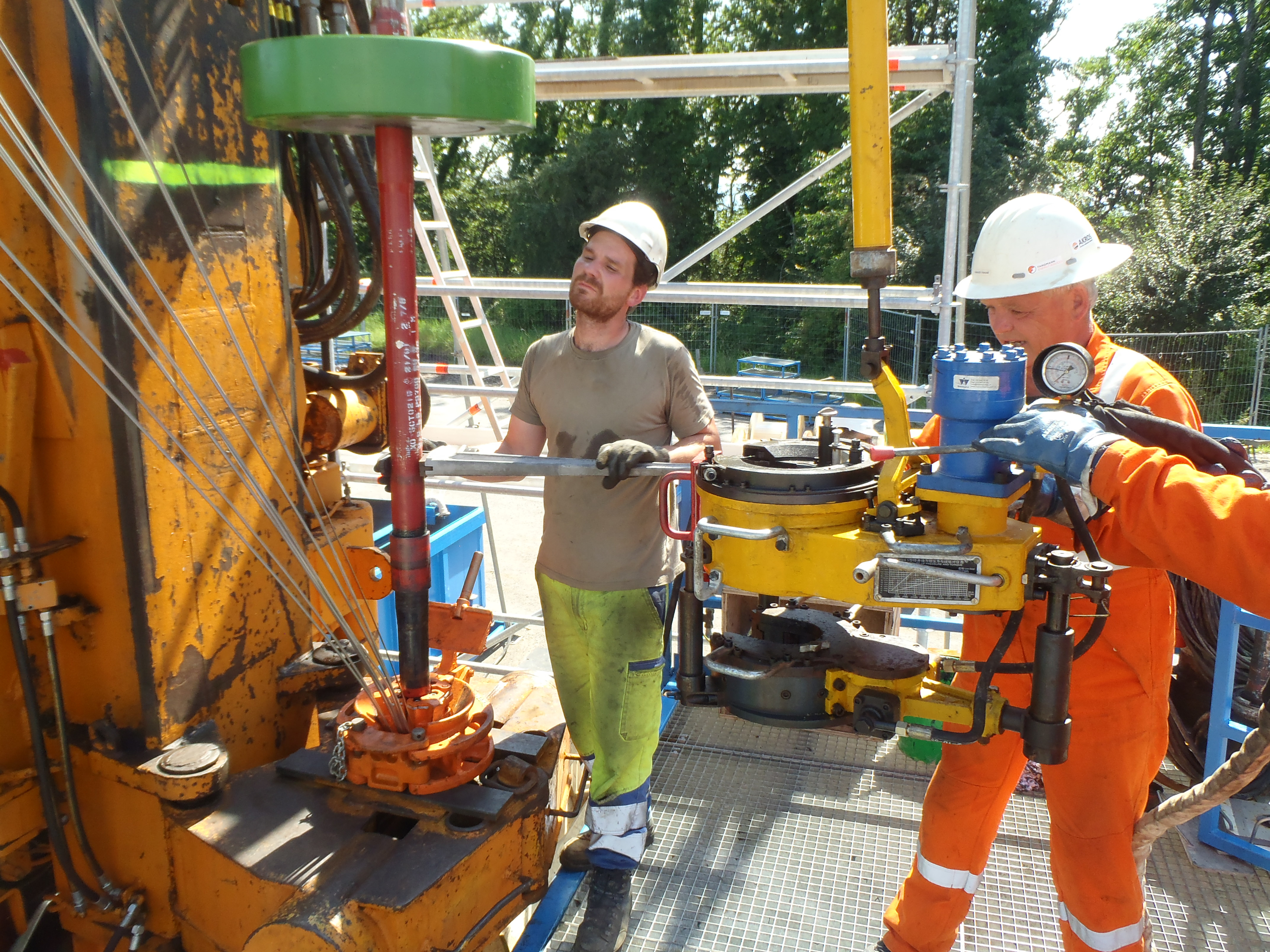

Selected TBO boreholes are equipped with multi-packer long-term monitoring systems to measure groundwater levels and pressures from specific formations and to collect groundwater samples from selected aquifers. Solexperts was contracted by Nagra to supply and install 3 multi-packer systems with seven monitoring intervals in three vertical TBO boreholes.
Main components of the packer systems

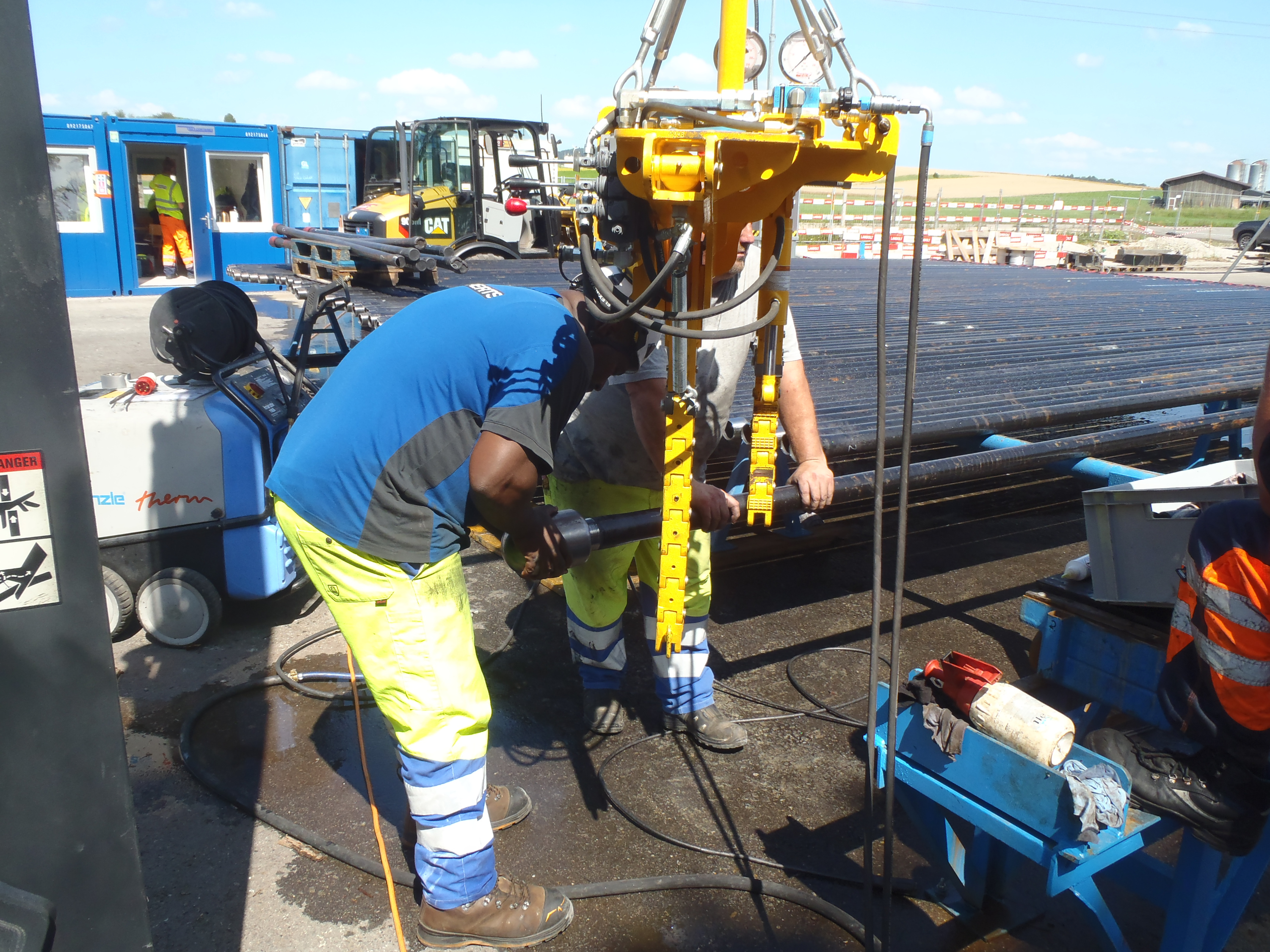

- Central tubing string

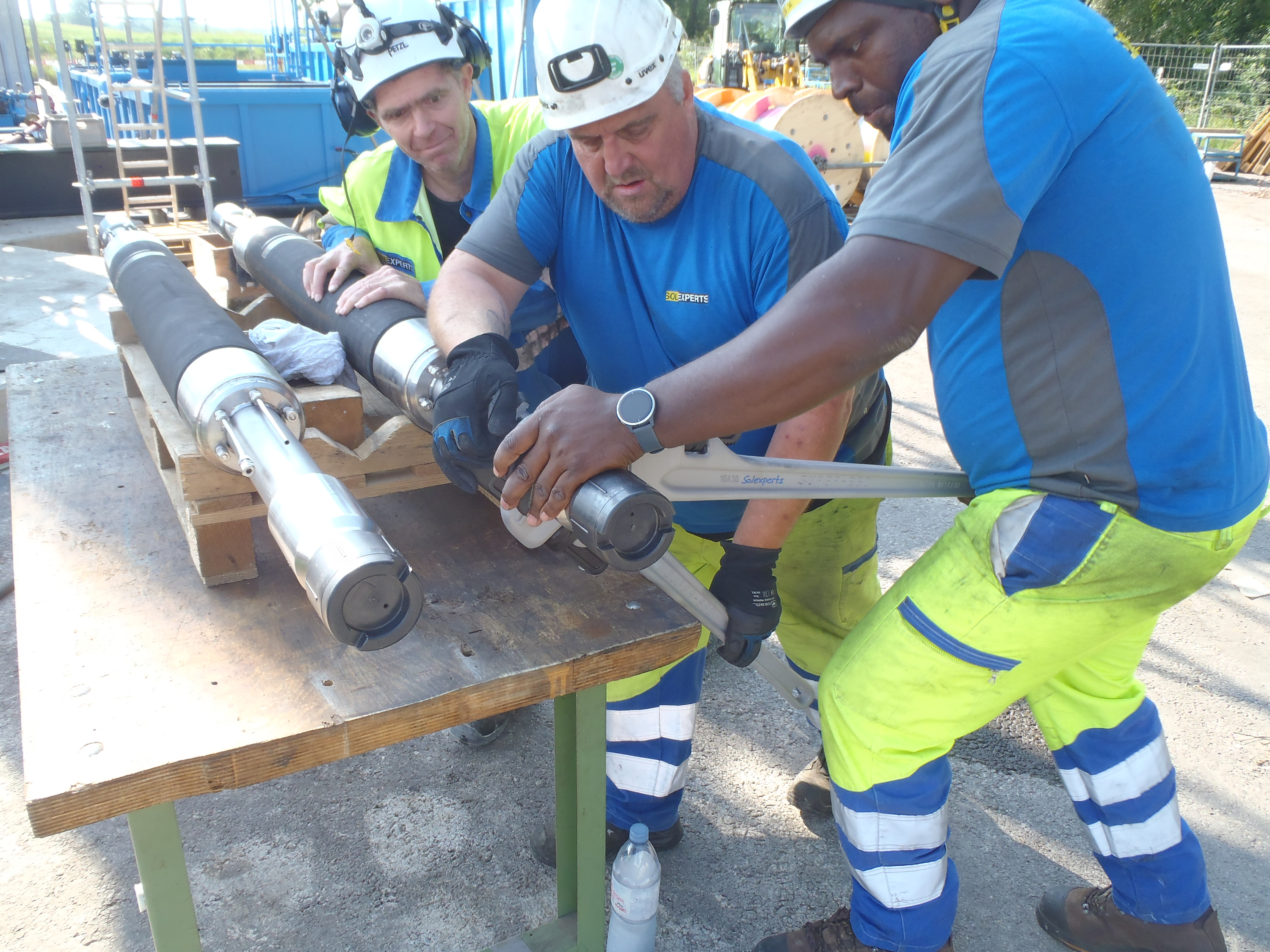

- Hydraulically inflatable packers

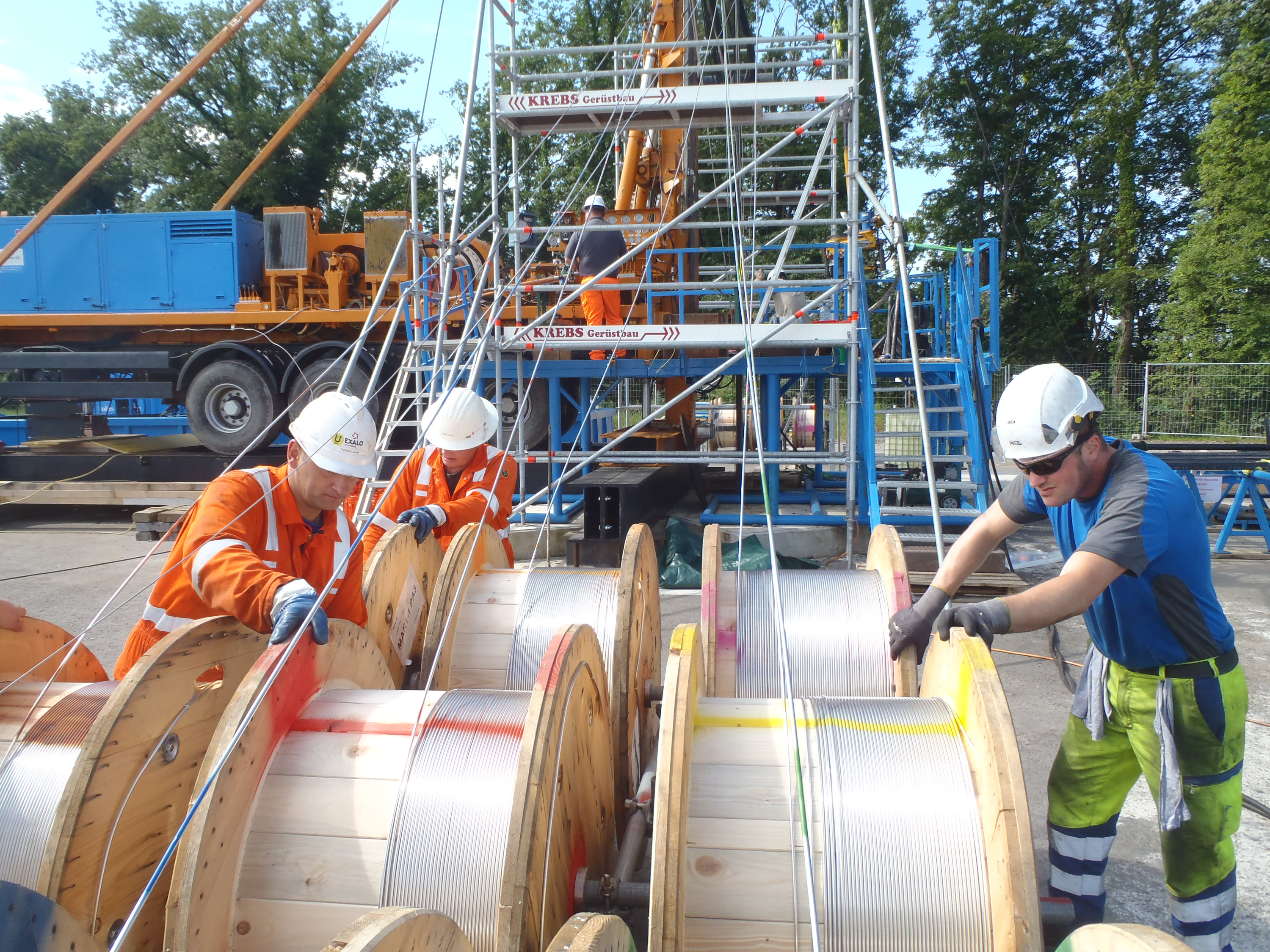

- Observation lines with ports/filters to measure the hydraulic pressure in the observation intervals
- Sliding sleeves, as additional access to the aquifers for groundwater sampling
- Pressure sensors for measurement of the observation interval and the packer pressures

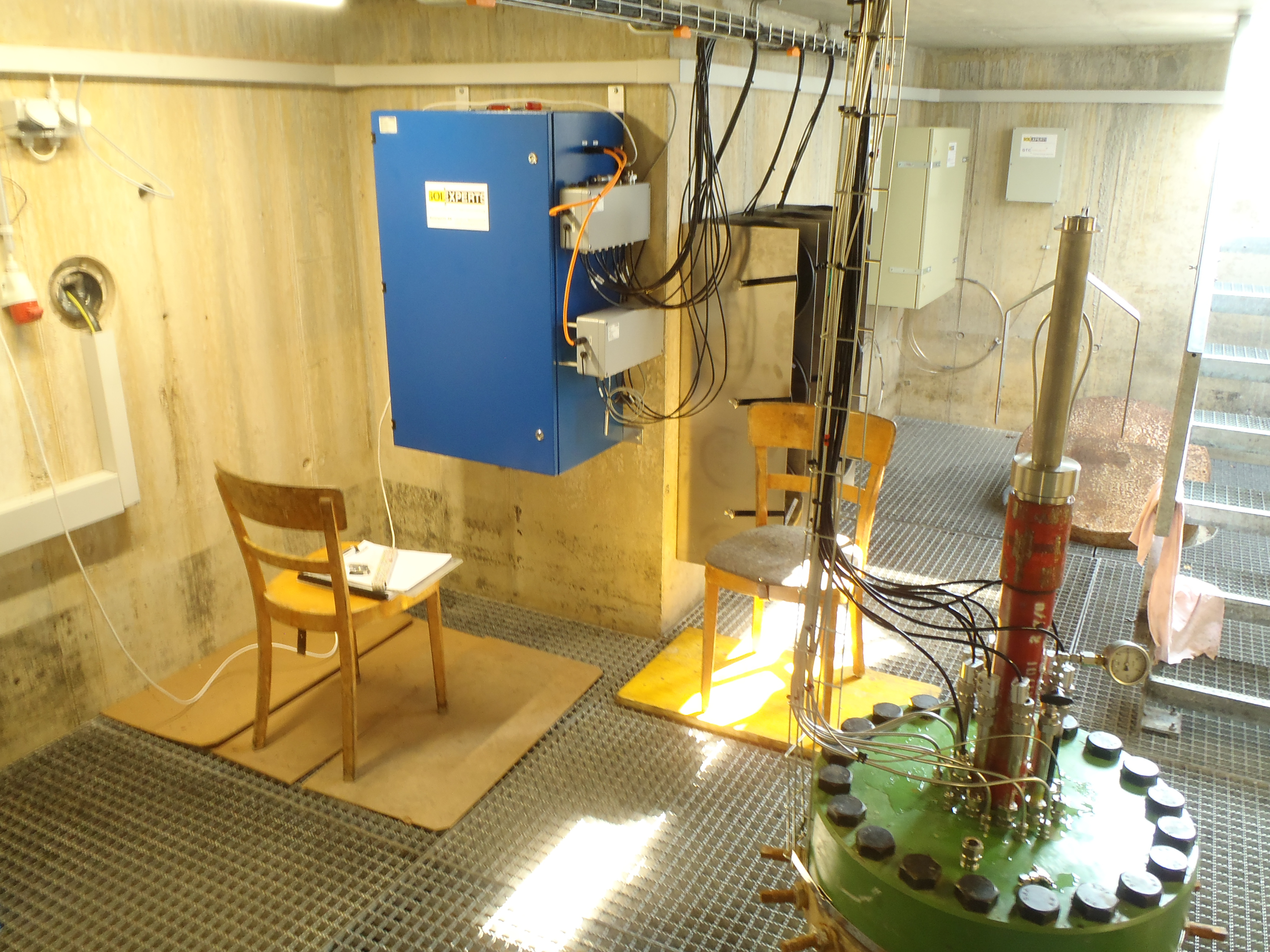

- Data acquisition system

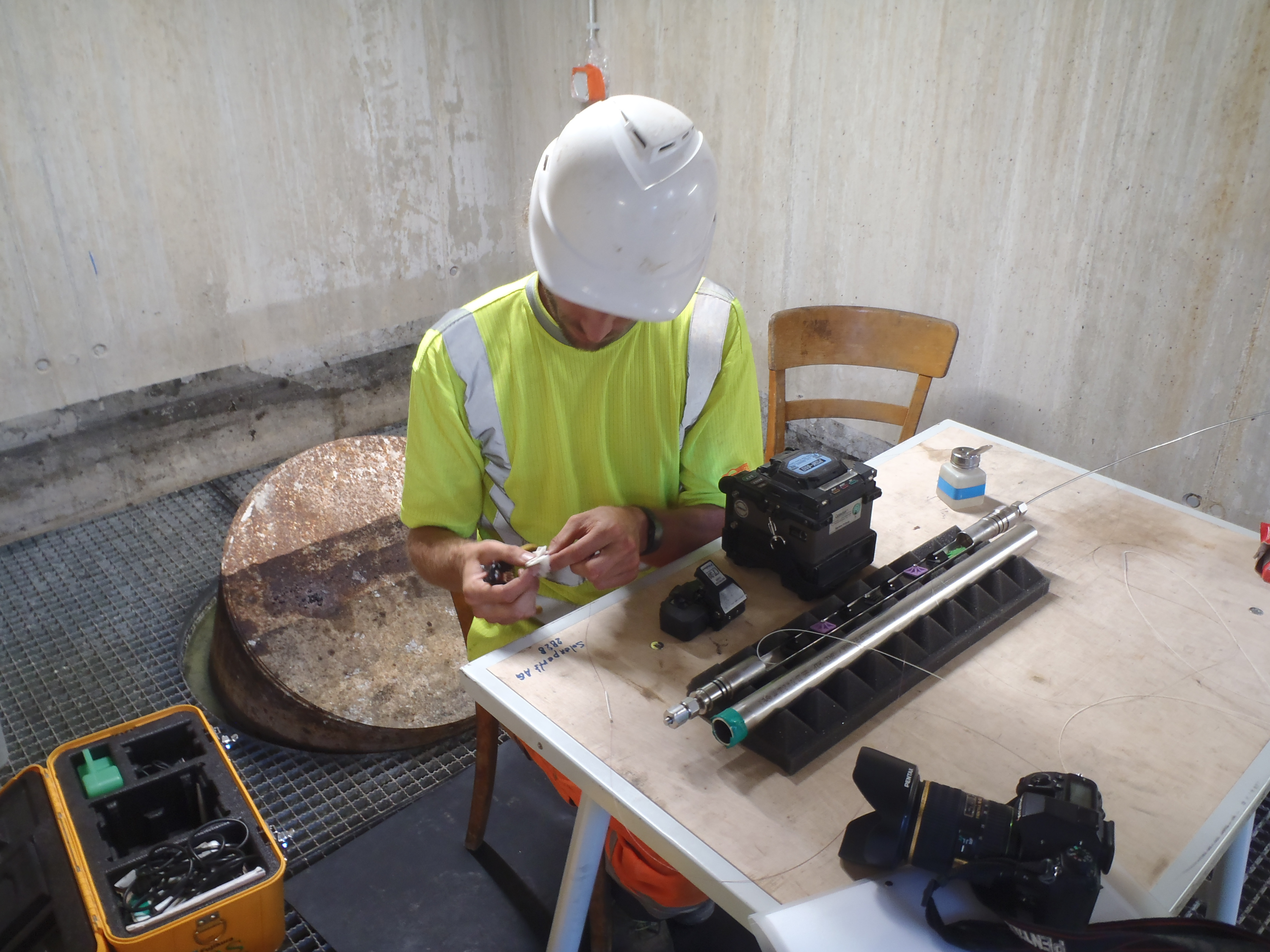

- Fibre optic sensor cable for distributed temperature measurement
Key data
Number of long-term systems: 3 with option for more
Boreholes: up to 1200 m deep, vertical
Number of observation intervals: 7
Project duration: 2020 - 2022
Project volume: several million CHF
Client: Nagra
Keywords: Monitoring of potential sites for radioactive waste repositories, groundwater level, groundwater sampling, distributed temperature measurement with fibre optic cable, packer
