Autoclave

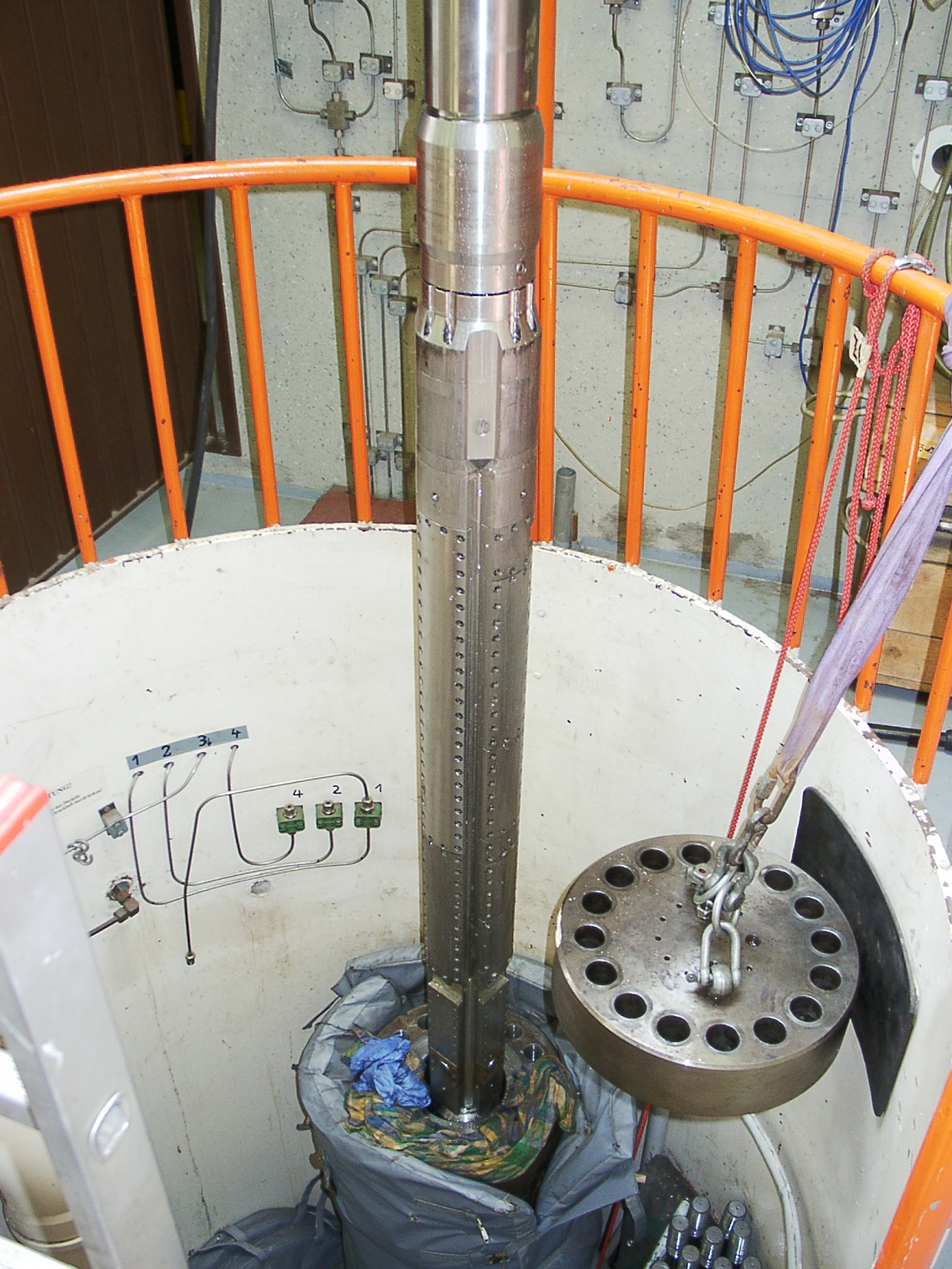

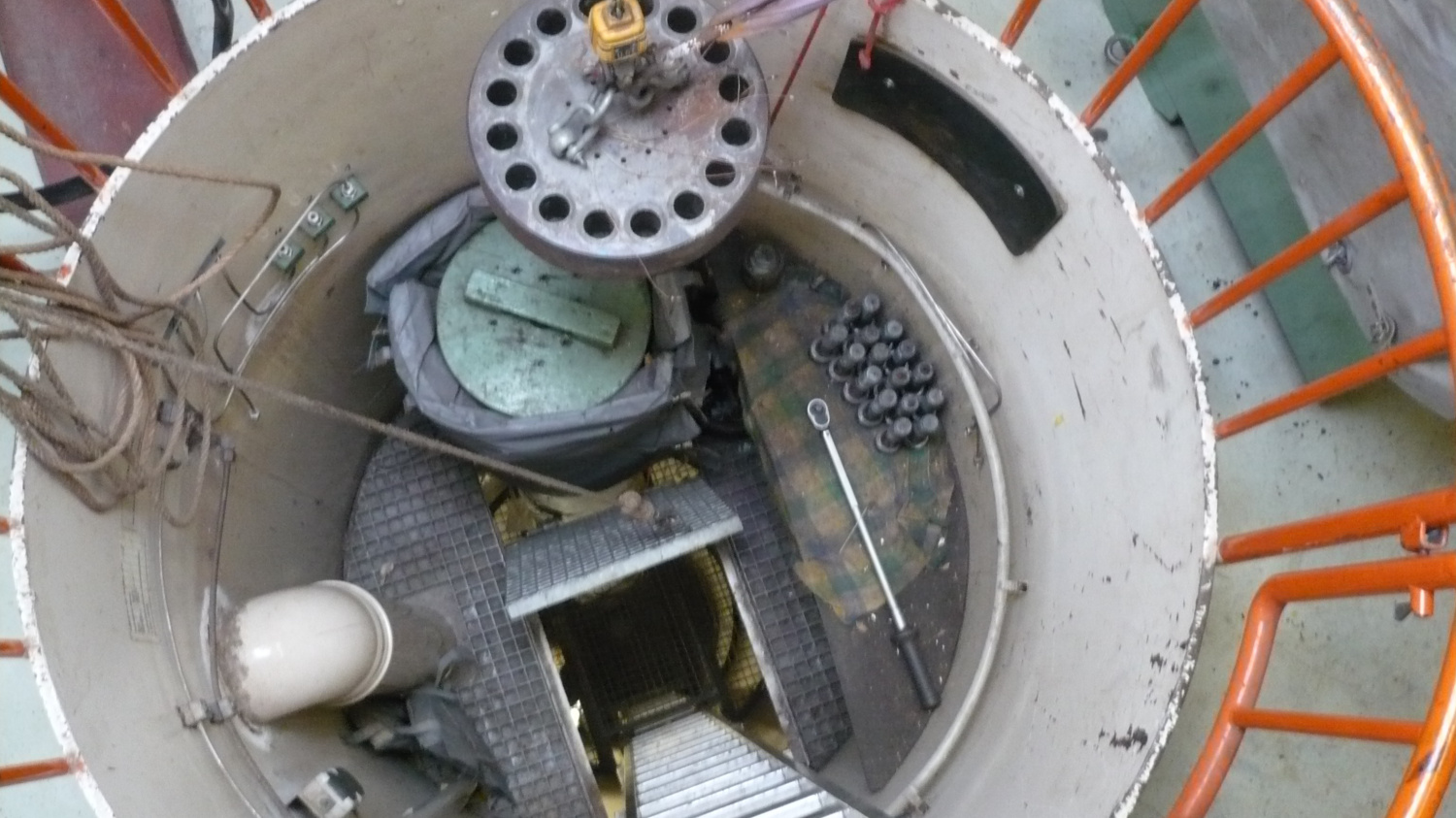

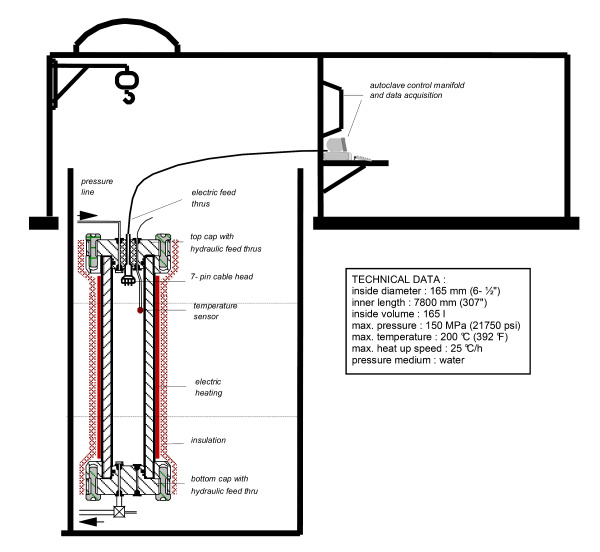

The borehole simulation autoclave developed by MeSy® is a unique test rig to cost-effectively test borehole probes and drilling tools at pressure conditions up to 150 MPa and temperatures up to 200 °C. The autoclave has an internal diameter of 165 mm (6-½ in.) and an effective length of 7.8 m, and is located underground in a 10-m-deep, 1.5-m-diameter borehole.
For more information on the autoclave system, click here.
| Autoklav - Technische Daten | |
| Inner diameter | 165 mm (6-½") |
| Inner length | 7800 mm (307") |
| Volume | 165 l |
| Max pressure | 150 MPa (21750 psi) |
| Max temperature | 200 °C (392 °F) |
| Max heating rate | 25 °C/h |
| Pressure medium | Water |
