Borehole inclinometer measuring tubes

The inclinometer measuring line is formed by the measuring tubes installed in ground, rock or structure. Standard connecting tubes made of HPVC with internal grooves are available for guiding a borehole inclinometer measuring probe. The connection between the individual measuring tubes can optionally be designed with a telescopic coupling.

Sliding micrometer and especially sliding deformation measurements are often combined with borehole inclinometer measurements to measure not only the axial displacements but the entire displacement vector. In addition to borehole inclinometer measuring tubes, Solexperts also offers tubes for the combined measurements.

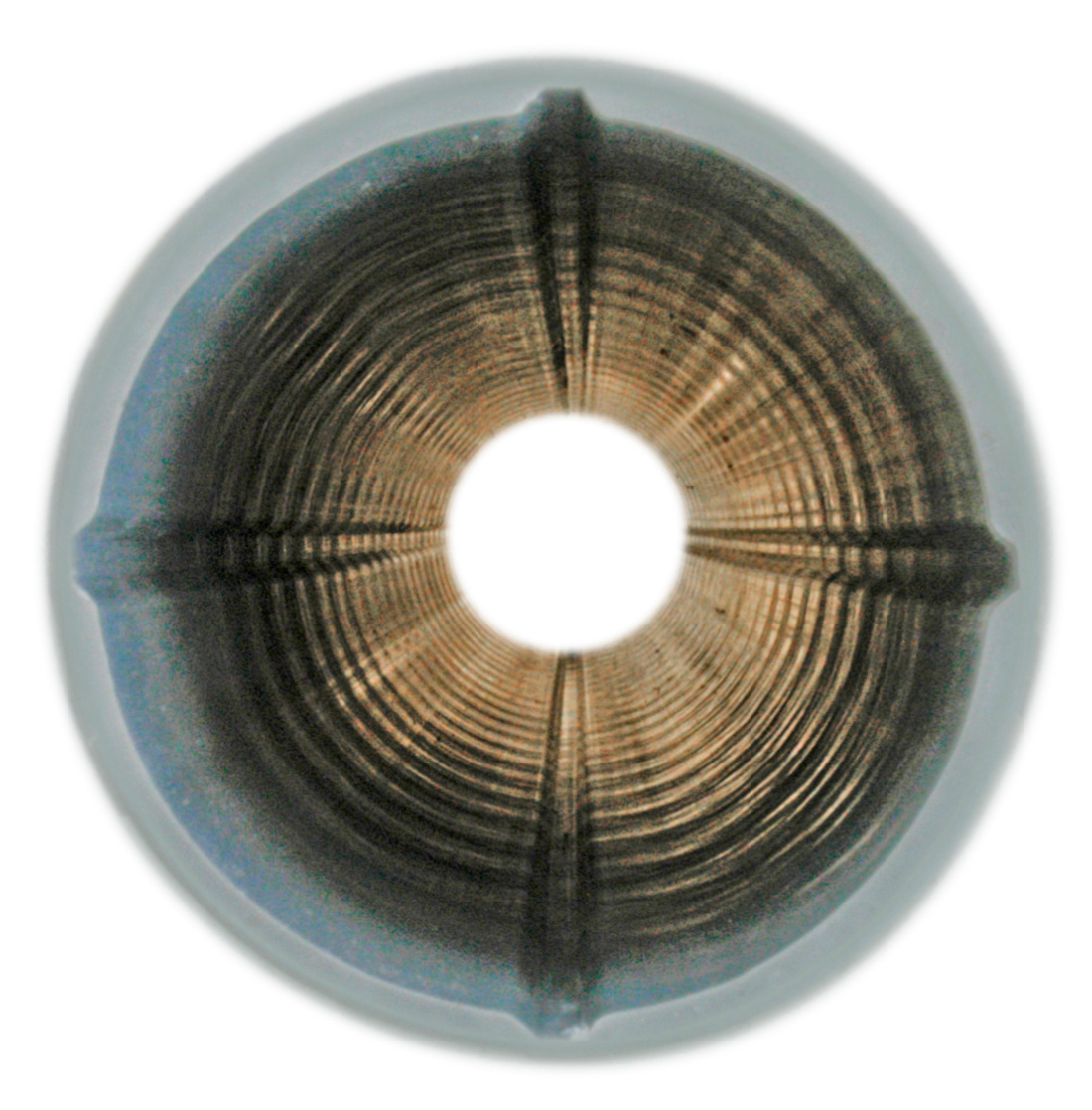

Measuring tube with grooves                                      Internal view of measuring tube with grooves                                Top cap                                                                      Bottom end piece
