CLINO-Chain: Permanently installable inclinometer chain

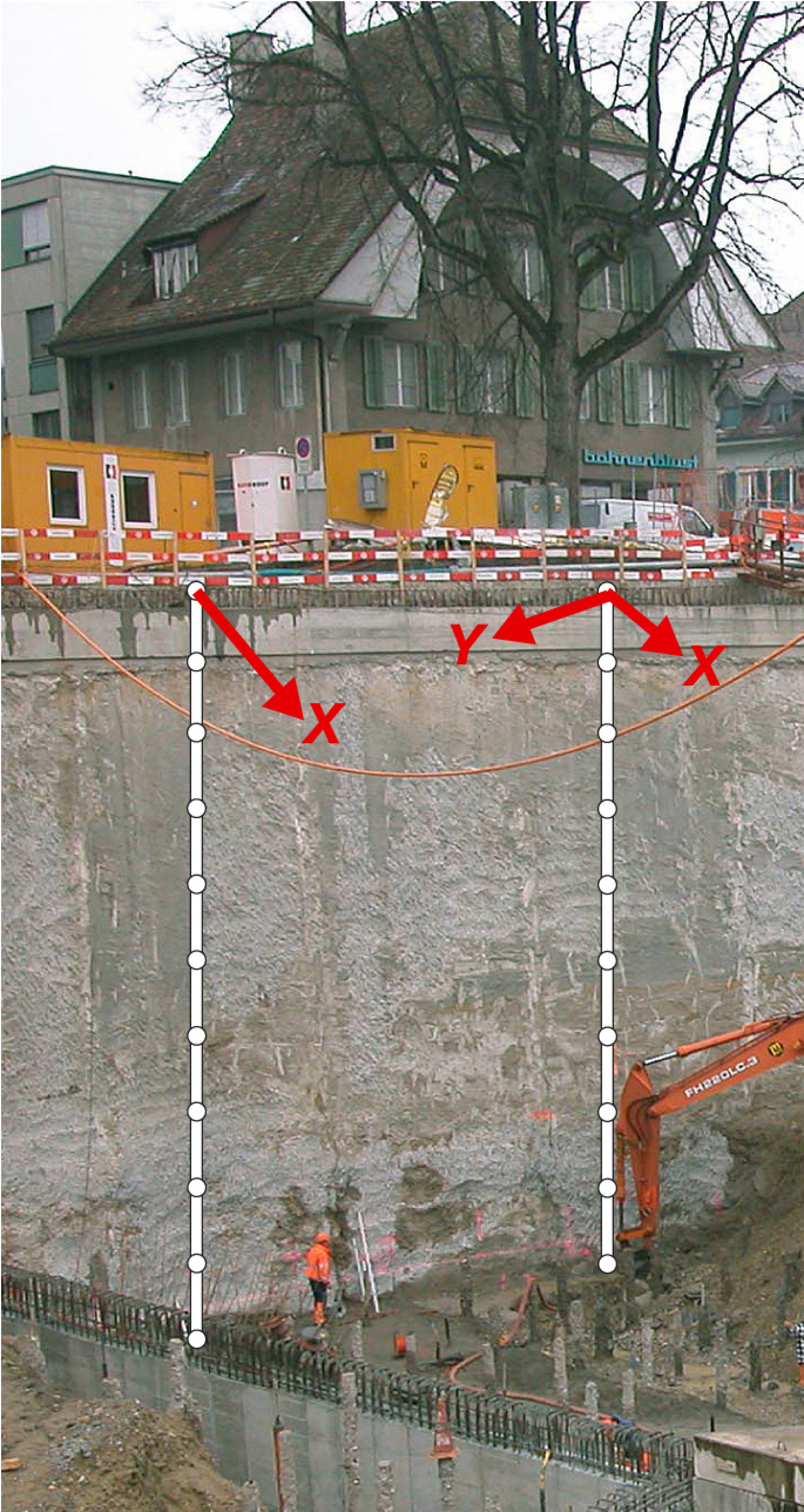

Radial displacements along vertical or horizontal measuring lines are measured automatically and continuously with inclinometer measuring chains (Clino-Chain). The Clino-Chain consists of measuring elements connected with ball joints, which can be 0.5 m to several metres long. The measuring elements are equipped with precise, long-term stable inclination sensors. The measuring accuracy in horizontal direction is +/-0.25 mm on 10 m measuring line length. The measuring range is optionally +/-10° or +/-30°. Biaxial measuring elements are available for vertical measuring lines and uniaxial measuring elements for horizontal measuring lines.

Features of the measuring system

  • Digital high-precision measuring probes in each measuring probe
  • Automatic measurement of inclination changes
  • Easy installation

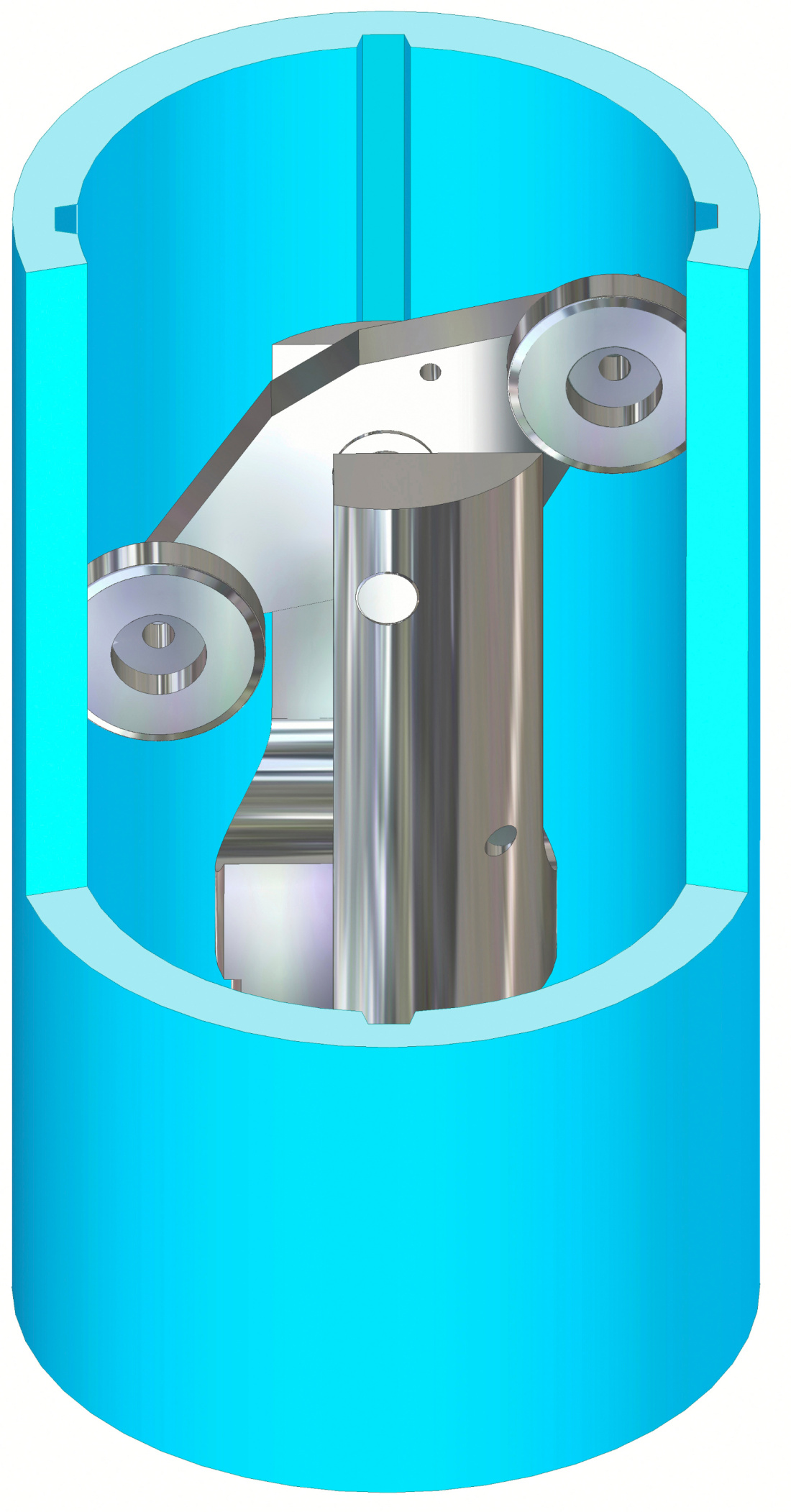

  • Innovative joints (statically determined bearing of the individual probe)
  • Only one data bus cable, data transmission protocol RS485
  • Fully reusable
  • Vertical measurements, uniaxial or biaxial
  • Horizontal measurements, uniaxial
  • Data directly in mm /m
  • Can be combined with Solexperts GeoMonitor, Solexperts Data Logger and WebDAVIS

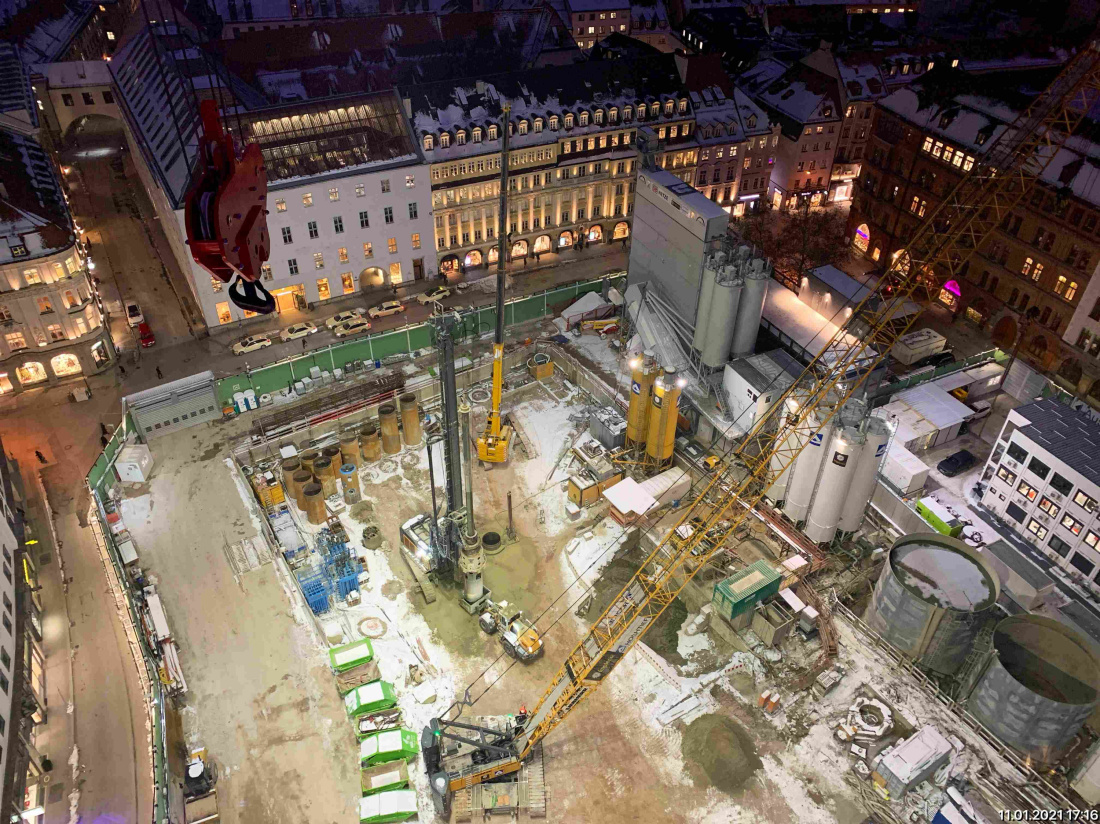

Munich, Marienhof VW41

Munich, Marienhof VW41
