Inclinometer measurement

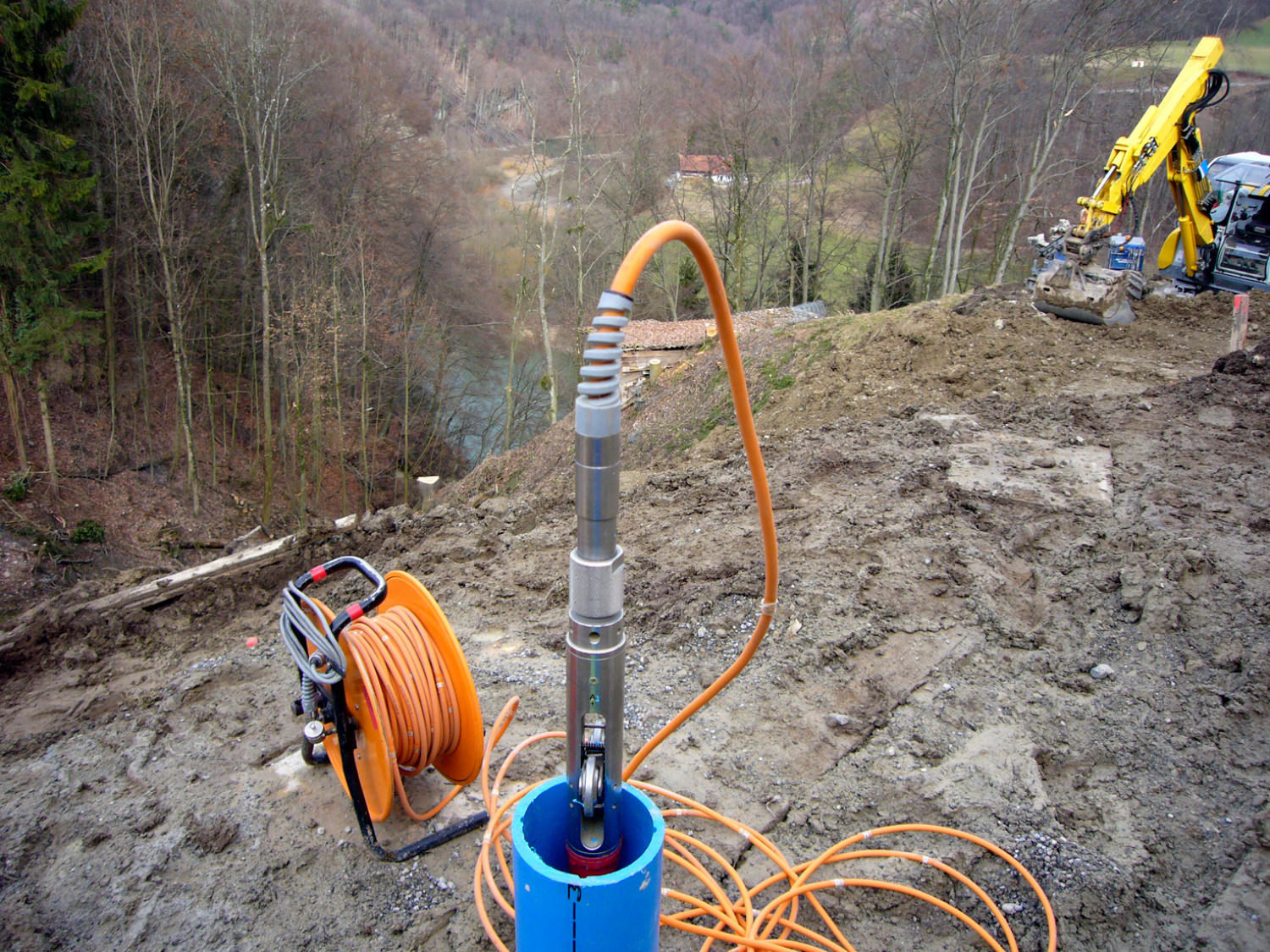

Different equipment is available to perform inclinometer measurements along vertical and horizontal measurement lines. The values measured by the very precise measuring probes are automatically recorded and in-situ already checked and verified. In the office, the data are evaluated and graphically and numerically presented. A photo documentation is additionally added to the report.
Distortions

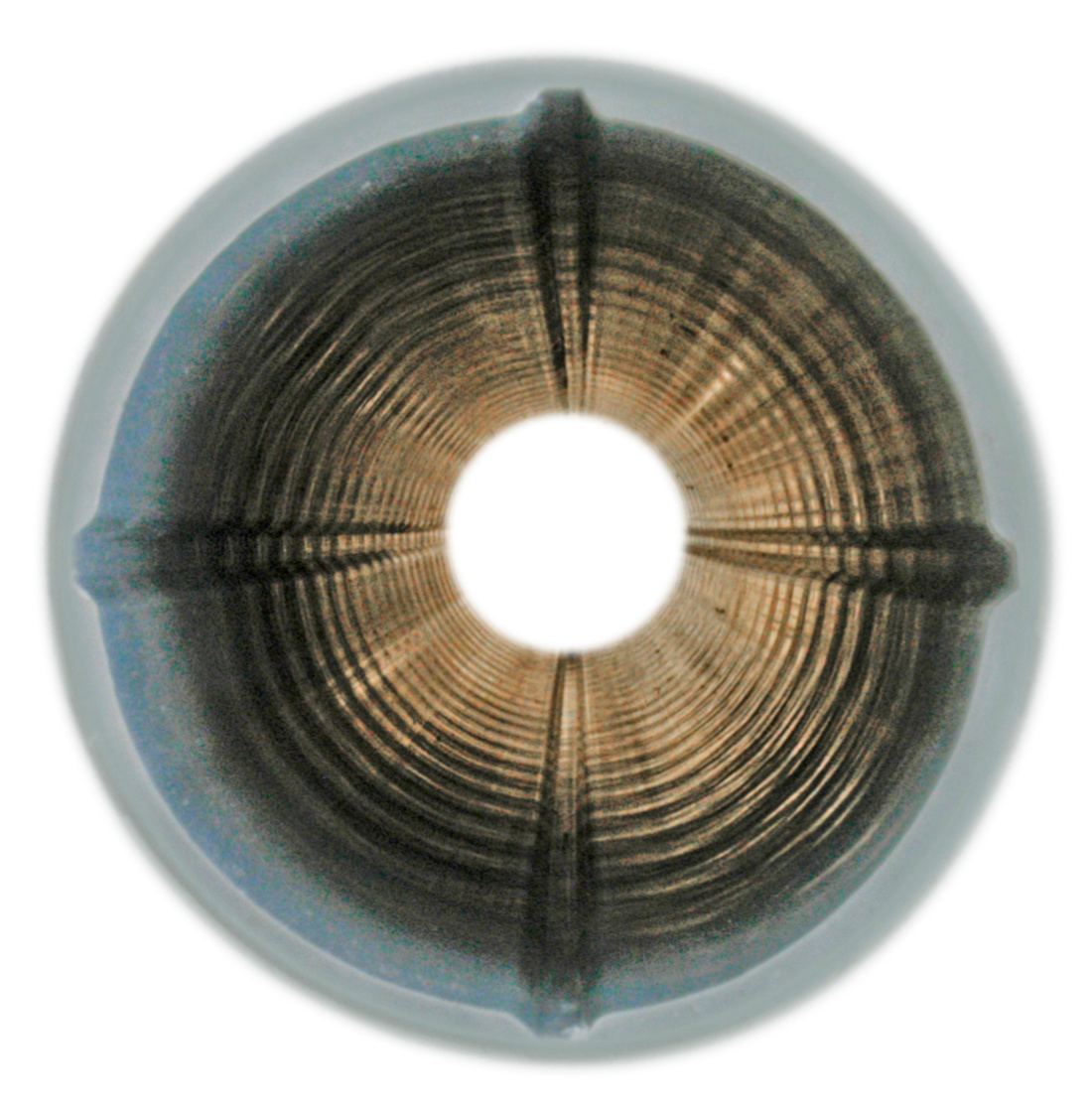

Distortion of the measuring tubes often occurs when the depth of the tubesis high. We instrument these boreholes with a special probe so that we can take the distortion into account in the analysis. A probe, which is insensitive to the groove distortion, is installed in horizontal measuring tubes.
